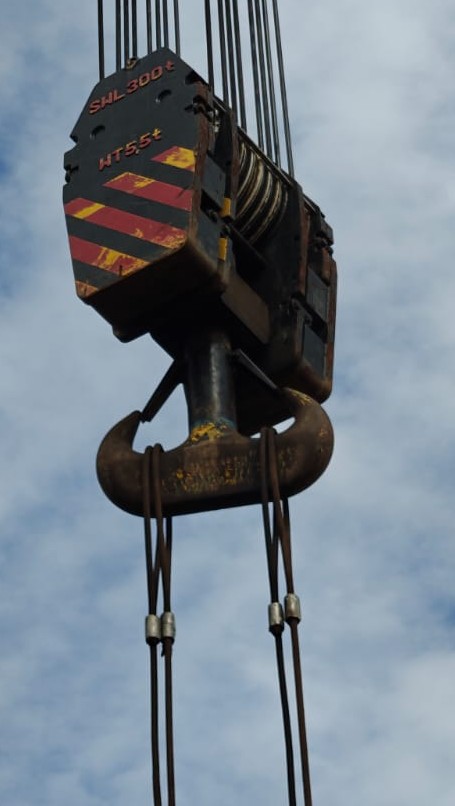

Wire ropes and wire rope slings remain the backbone of many lifting operations. HEFT supplies a wide range of wire ropes and manufactures slings to suit crane operations, winching, mooring and general lifting tasks.
Galvanized Wire Rope Slings (6×36, Steel Core) are designed for safe and reliable lifting in industrial applications. The flexible 6×36 construction provides good handling characteristics, while the steel core offers strength and stability under load.
Wire Rope Sling – 6×36, Steel Core, Galvanized is manufactured using a multi-strand construction that provides improved flexibility and fatigue resistance for general lifting operations. The steel core (IWRC) enhances load-bearing capacity and maintains rope structure under heavy-duty use, while the galvanized finish improves corrosion resistance in outdoor and humid environments. Suitable for use in cranes, hoists, rigging assemblies, and material handling applications where safe lifting and durability are required.
| Sr. No | SWL @ 90° | Available Length (Meter) | ||||
|---|---|---|---|---|---|---|
| 1 | 5 | 2 | 4 | 6 | 8 | 12 |
| 2 | 10 | 2 | 4 | 6 | 8 | 12 |
| 3 | 15 | 2 | 4 | 6 | 8 | 12 |
| 4 | 25 | 6 | 8 | 12 | 18 | 24 |
| 5 | 50 | 6 | 8 | 12 | 18 | 24 |
| 6 | 100 | 6 | 8 | 12 | 18 | 24 |
| 7 | 150 | 6 | 8 | 12 | 18 | 24 |
| 8 | 200 | 6 | 8 | 12 | 18 | 24 |
| 9 | 300 | 6 | 8 | 12 | 18 | 24 |
The 2-Way Wire Rope Sling is a versatile lifting accessory designed for handling heavy loads safely and efficiently. It is constructed with two wire rope legs connected to a master link, allowing balanced load distribution during lifting operations. Manufactured from high-strength steel wire rope, this sling provides excellent durability, flexibility, and resistance to abrasion. It is widely used in construction, industrial plants, shipyards, and material-handling applications where secure and stable lifting is required.
| Id No. | Dia | Length |
|---|---|---|
| HEFT-2W-WRS-0001 | 08 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0002 | 10 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0003 | 12 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0004 | 14 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0005 | 16 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0006 | 18 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0007 | 20 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0008 | 22 | 03, 05, 06, 08, 10, 12 |

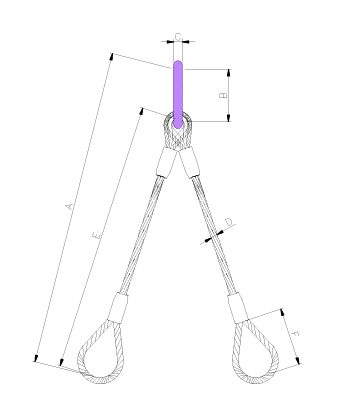

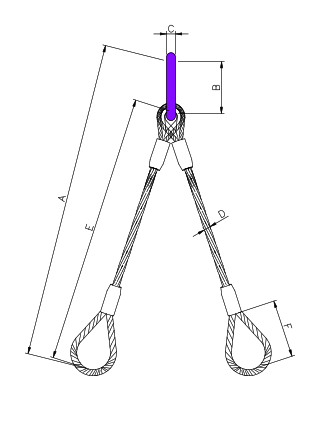

The 2-Way Wire Rope Sling with Normal Eye is a commonly used lifting sling designed for safe and efficient handling of heavy loads. It consists of two wire rope legs connected to a master link, with normal (soft) eyes formed at the ends of each leg. The eyes are typically reinforced with thimbles to reduce wear and maintain rope shape.
This type of sling offers good load stability and balanced lifting, making it suitable for construction, manufacturing, shipbuilding, and general industrial lifting operations.
| Id No. | Dia | Available Length |
|---|---|---|
| HEFT-2W-WRS-0001 | 08 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0002 | 10 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0003 | 12 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0004 | 14 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0005 | 16 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0006 | 18 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0007 | 20 | 03, 05, 06, 08, 10, 12 |
| HEFT-2W-WRS-0008 | 22 | 03, 05, 06, 08, 10, 12 |

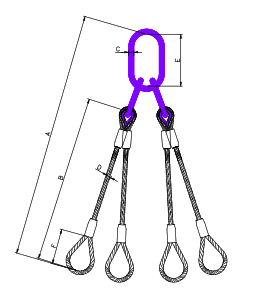

The 4-Way Wire Rope Sling (Normal Eye) is a versatile and heavy-duty lifting accessory designed for stable and balanced multi-point lifting operations. It consists of four wire rope legs connected to a master link, with each leg terminated by a normal (soft) eye for easy attachment to hooks, shackles, or lifting points.
Manufactured from high-strength steel wire rope, this sling provides excellent load distribution, durability, and resistance to abrasion and fatigue. The normal eye design allows flexibility in rigging while maintaining reliable performance in demanding environments.
| Id No. | Dia | Available Length |
|---|---|---|
| HEFT-4W-WRS-NE-0001 | 08 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-NE-0002 | 10 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-NE-0003 | 12 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-NE-0004 | 14 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-NE-0005 | 16 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-NE-0006 | 18 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-NE-0007 | 20 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-NE-0008 | 22 | 03, 05, 06, 08, 10, 12 |

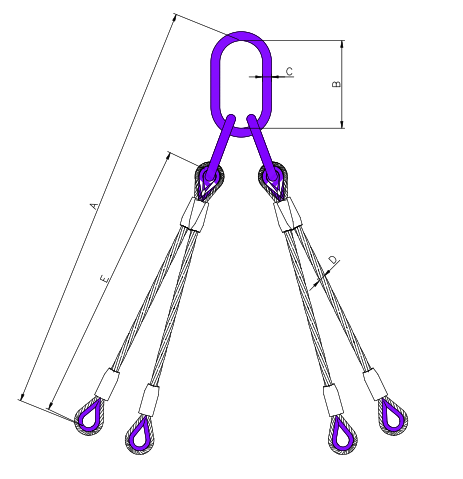

The 4-Way Wire Rope Sling is a robust lifting solution designed for secure and balanced multi-leg lifting applications. It features four wire rope legs connected to a central master link, enabling even load distribution and enhanced stability during lifting operations
Constructed from high-quality steel wire rope, the sling offers high tensile strength, durability, and resistance to wear, making it suitable for demanding industrial environments. The four-leg configuration allows safe handling of heavy, bulky, or irregular-shaped loads.
Commonly used in construction, offshore operations, shipyards, steel structures, and heavy manufacturing, the 04 4-Way Wire Rope Sling ensures reliable performance and improved lifting safety.
| Id No. | Dia | Available Length |
|---|---|---|
| HEFT-4W-WRS-T-0001 | 08 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-T-0002 | 10 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-T-0003 | 12 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-T-0004 | 14 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-T-0005 | 16 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-T-0006 | 18 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-T-0007 | 20 | 03, 05, 06, 08, 10, 12 |
| HEFT-4W-WRS-T-0008 | 22 | 03, 05, 06, 08, 10, 12 |

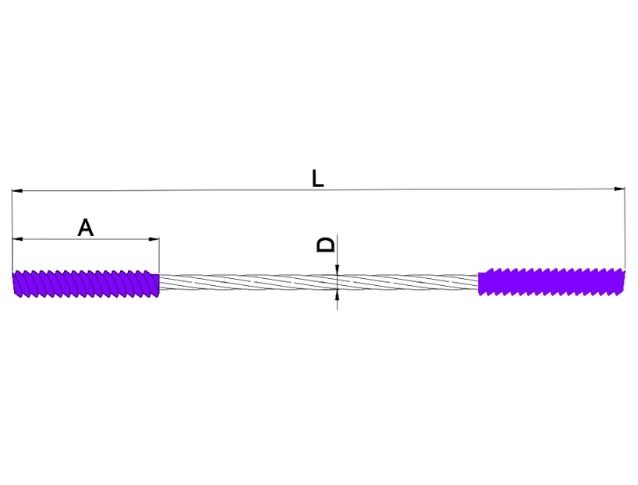

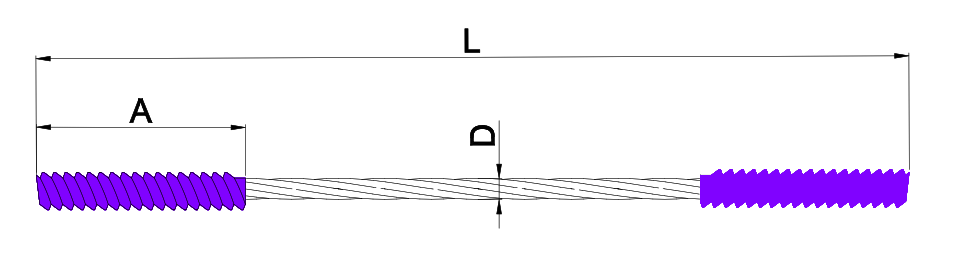

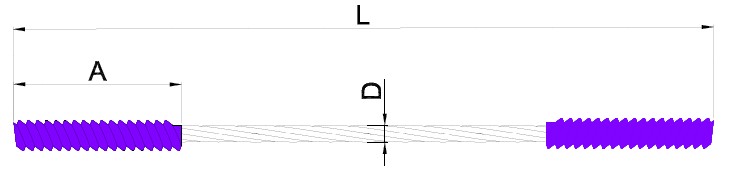

The Threaded Type Wire Rope Sling is a specialized lifting sling designed for secure connection to loads with threaded lifting points. One end of the wire rope is fitted with a threaded terminal, allowing direct and firm attachment to eye bolts, threaded sockets, or embedded lifting inserts.
Manufactured from high-strength steel wire rope, this sling provides excellent load-bearing capacity, durability, and reliability in heavy-duty lifting applications. The threaded connection ensures stable load transfer, minimizes slippage, and improves overall lifting safety.
This type of wire rope sling is widely used in precast concrete lifting, machinery installation, steel structure assembly, and industrial handling, where precise and secure threaded engagement is required.
| Id No. | Dia | Available Length |
|---|---|---|
| HEFT-THR-WRS-0001 | 08 | 03, 05, 06, 08, 10, 12 |
| HEFT-THR-WRS-0002 | 10 | 03, 05, 06, 08, 10, 12 |
| HEFT-THR-WRS-0003 | 12 | 03, 05, 06, 08, 10, 12 |
| HEFT-THR-WRS-0004 | 14 | 03, 05, 06, 08, 10, 12 |
| HEFT-THR-WRS-0005 | 16 | 03, 05, 06, 08, 10, 12 |
| HEFT-THR-WRS-0006 | 18 | 03, 05, 06, 08, 10, 12 |
| HEFT-THR-WRS-0007 | 20 | 03, 05, 06, 08, 10, 12 |
| HEFT-THR-WRS-0008 | 22 | 03, 05, 06, 08, 10, 12 |

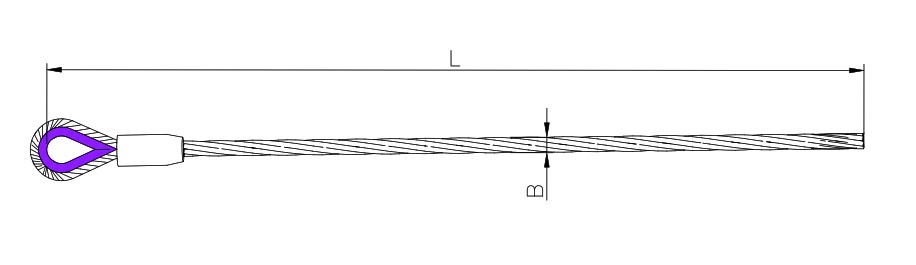

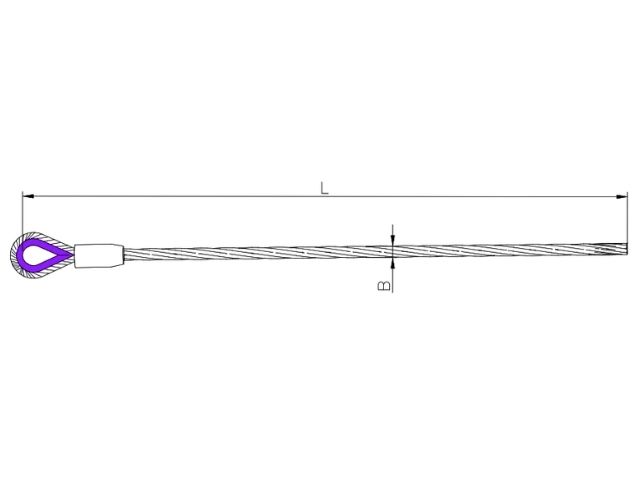

A wire rope with a thimble on one side is a versatile rigging component designed for lifting, pulling, and securing loads. The wire rope is constructed from high-strength steel wires twisted into strands, providing excellent tensile strength and flexibility. One end of the rope is formed into an eye loop fitted with a thimble, which protects the rope from abrasion, deformation, and excessive wear when connected to shackles, hooks, or pins.
The thimble helps maintain the correct eye shape, improves load distribution, and extends the service life of the wire rope. The opposite end may be left plain or terminated according to application requirements. This configuration is widely used in construction, marine, industrial lifting, towing, and anchoring applications, where durability, safety, and reliability are essential.
| Id No. | Dia Length (mm values) |
|---|---|
| 08 | 03,05,06,08,10,12 |
| 10 | 03,05,06,08,10,12 |
| 12 | 03,05,06,08,10,12 |
| 14 | 03,05,06,08,10,12 |
| 16 | 03,05,06,08,10,12 |
| 18 | 03,05,06,08,10,12 |
| 20 | 03,05,06,08,10,12 |
| 22 | 03,05,06,08,10,12 |

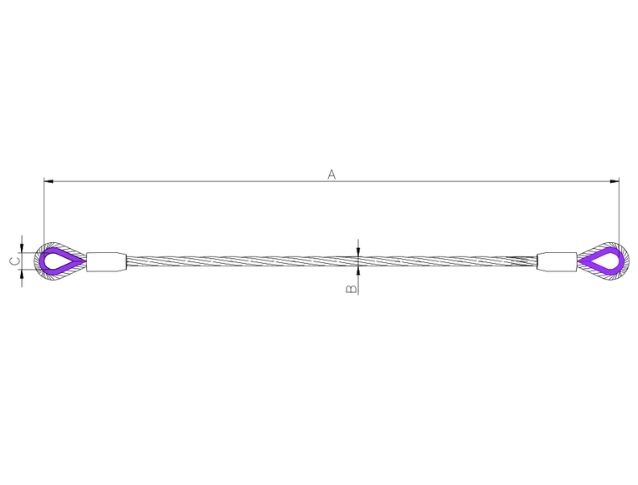

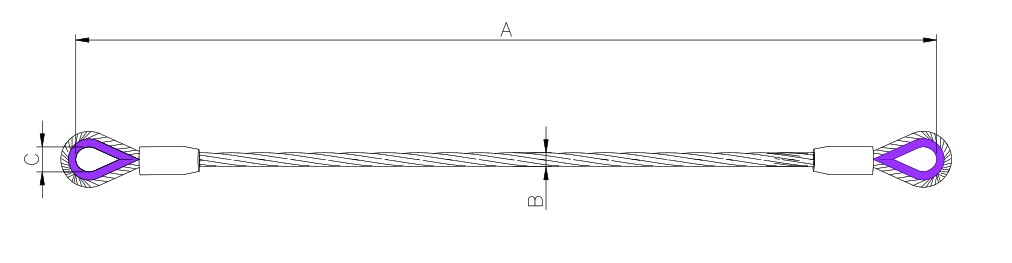

A wire rope sling with thimbles on both ends is a high-strength lifting and rigging assembly designed for secure load handling. It is made from stranded steel wire rope, which provides excellent tensile strength, flexibility, and resistance to wear and fatigue.
Both ends of the rope are formed into eye loops fitted with thimbles, which protect the rope from abrasion, deformation, and crushing when connected to hooks, shackles, or other lifting attachments. The thimbles also ensure proper load distribution across the eye, enhancing the sling’s safety and durability.
| Id No. | Dia | Length |
|---|---|---|
| 03,05,06,08,10,12 | 03,05,06,08,10,12 | |
| 03,05,06,08,10,12 | 03,05,06,08,10,12 | |
| 03,05,06,08,10,12 | 03,05,06,08,10,12 | |
| 03,05,06,08,10,12 | 03,05,06,08,10,12 | |
| 03,05,06,08,10,12 | 03,05,06,08,10,12 | |
| 03,05,06,08,10,12 | 03,05,06,08,10,12 | |
| 03,05,06,08,10,12 | 03,05,06,08,10,12 | |
| 03,05,06,08,10,12 | 03,05,06,08,10,12 |
