G-209 / S-209 Screw Pin Anchor Shackles
G-210 Screw Pin Chain Shackles
G-2130 / S-2130 Bolt Type Anchor Shackles
G-2150 Bolt Type Chain Shackles

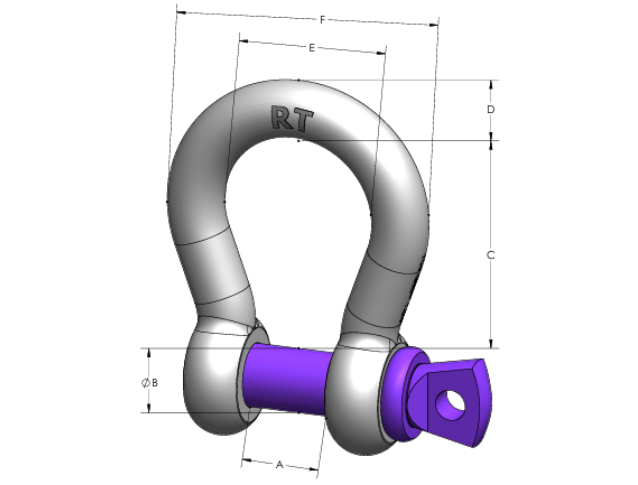

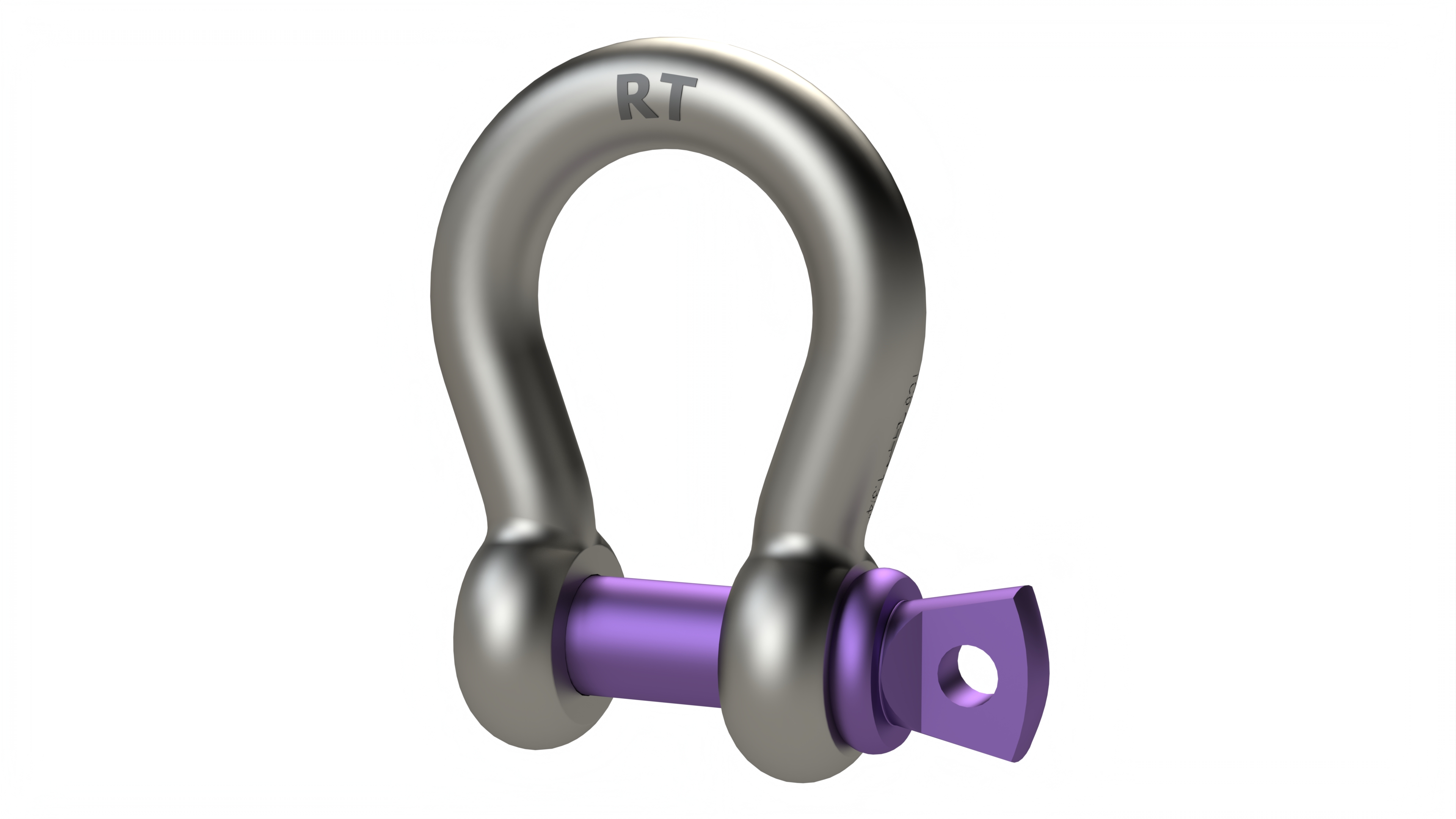

G-209 / S-209 Screw Pin Anchor Shackles

  • Meets performance requirements of Grade 6 shackles.
  • Forged, Quenched & Tempered, with alloy pins.
  • Working Load Limit and Grade 6 permanently shown on every shackle.
  • Hot-dip galvanized (G) or self colored (S).
  • Sizes 3/8 inch and below are mechanically galvanized.
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certifications. Proof testing and certification available when requested at the time of order, charges will apply.
  • Approved for use at -40° C (-40° F) to 204° C (400° F).
  • All 209 and 210 shackles can meet charpy requirements of 42 Joules (31 ft-lb) avg. at -20° C (-4° F) upon special request.
  • Meets or exceeds all requirements of ASME B30.26.
  • Type Approval certification in accordance with ABS Marine Vessel Rules, ABS Mobile Offshore Units, and ABS Guide for the Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
  • G-209 Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C271, Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
  • Look for the Red Pin®... the mark of genuine Crosby quality.

G‑209 / S‑209 Screw Pin Anchor Shackles – full specifications

Nominal Size (in) Nominal Size (mm) WLL (t) (frac) WLL (t) (dec) Stock No. HEFT Model No. Weight (kg) A (mm) Tol A ± B (mm) C (mm) Tol C ± D (mm) E (mm) F (mm)
3/16 4.76 1/3 0.33 1018357 HTBS-0001 0.03 10 1.5 6 22 1.5 5 15 25
1/4 6.35 1/2 0.5 1018375 HTBS-0002 0.05 12 1.5 8 29 1.5 6 20 32
5/16 7.93 3/4 0.75 1018393 HTBS-0003 0.09 14 1.5 10 31 3.3 8 21 37
3/8 9.52 1 1 1018419 HTBS-0004 0.14 17 1.5 11 37 3.3 10 26 46
7/16 11.11 1 1/2 1.5 1018437 HTBS-0005 0.17 19 1.5 13 43 3.3 11 30 52
1/2 12.7 2 2 1018455 HTBS-0006 0.33 21 1.5 16 48 3.3 13 33 59
5/8 15.87 3 1/4 3.25 1018473 HTBS-0007 0.62 27 1.5 19 60 6.4 18 43 74
3/4 19.05 4 3/4 4.75 1018491 HTBS-0008 1.07 32 1.5 22 71 6.4 21 51 89
7/8 22.22 6 1/2 6.5 1018516 HTBS-0009 1.64 37 1.5 25 84 6.4 25 58 103
1 25.4 8 1/2 8.5 1018534 HTBS-0010 2.28 43 1.5 30 96 6.4 27 68 119
1-1/8 28.57 9 1/2 9.5 1018552 HTBS-0011 3.36 46 1.5 32 108 6.4 32 74 131
1-1/4 31.75 12 12 1018570 HTBS-0012 4.31 52 1.5 36 119 6.4 35 83 146
1-3/8 34.92 13 1/2 13.5 1018598 HTBS-0013 6.14 57 3.3 40 133 6.4 38 92 162
1-1/2 38.1 17 17 1018614 HTBS-0014 7.8 60 3.3 42 146 6.4 41 99 176
1-3/4 44.45 25 25 1018632 HTBS-0015 14.02 73 3.3 52 178 6.4 57 127 224
2 50.8 35 35 1018650 HTBS-0016 20.4 83 3.3 58 197 6.4 61 146 258
2-1/2 63.5 55 55 1018678 HTBS-0017 38.9 105 6.4 71 267 6.4 80 184 324
⤹ scroll horizontally if needed

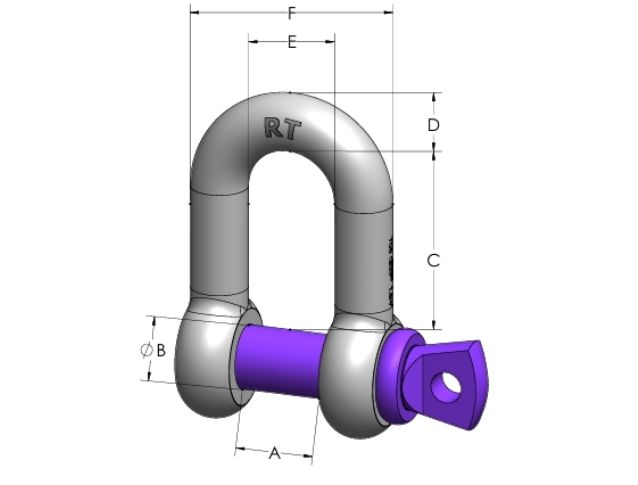

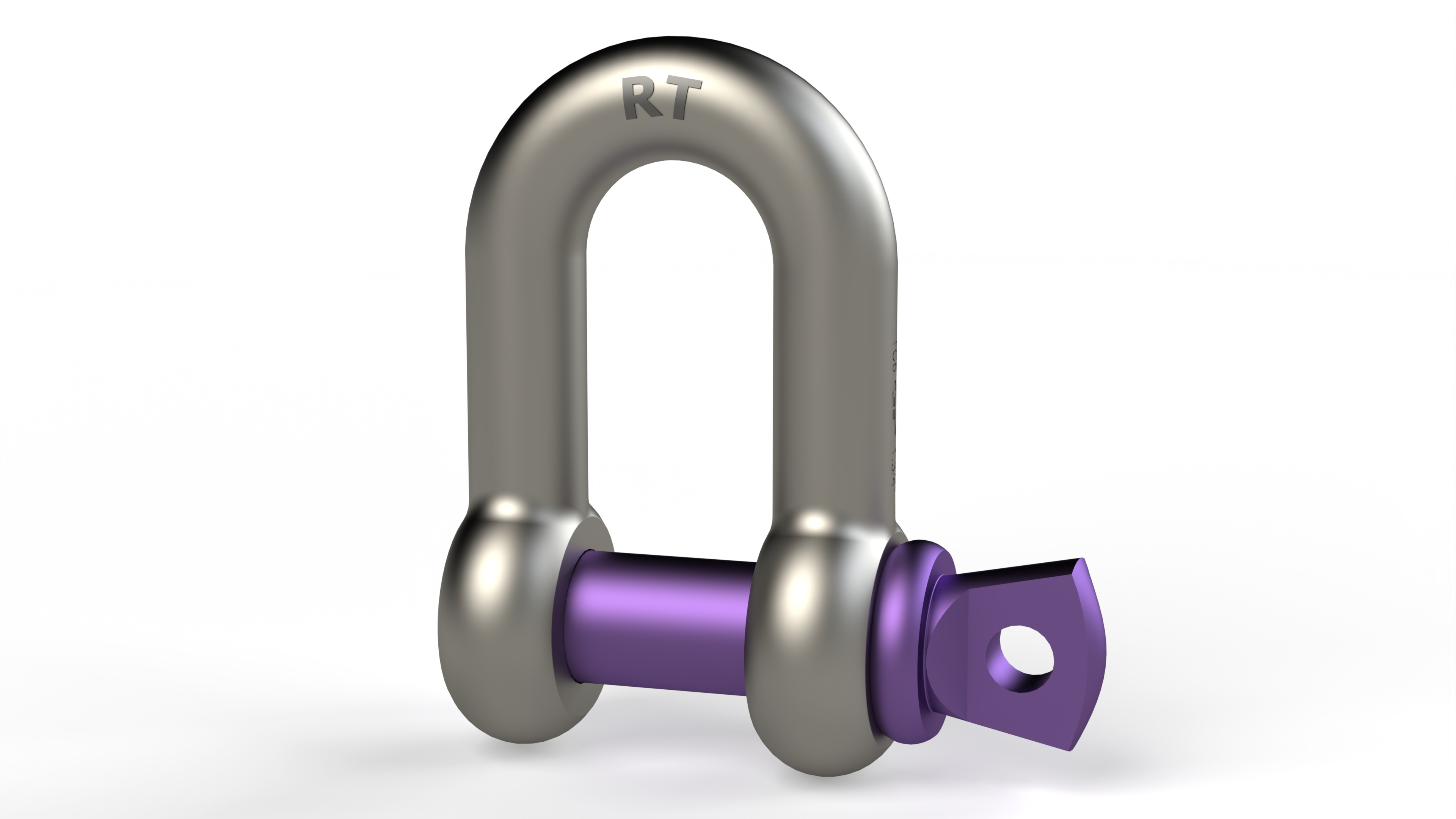

G-210 Screw Pin Chain Shackles

  • Forged, Quenched & Tempered, with alloy pins.
  • Working Load Limit and Grade 6 permanently shown on every shackle.
  • Hot-dip galvanized.
  • Sizes 3/8 inch and below are mechanically galvanized.
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certifications. Proof testing and certification available when requested at the time of order, charges will apply.
  • Approved for use at -40° F (-40° C) to 400° F (204° C).
  • All 209 and 210 shackles can meet charpy requirements of 31 ft-lb (42 Joules) avg. at -4° F (-20° C) upon special request.
  • Meets or exceeds all requirements of ASME B30.26.
  • Type Approval certification in accordance with ABS Marine Vessel Rules, ABS Mobile Offshore Units, and ABS Guide for the Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
  • G-210 Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271, Type IVB, Grade A, Class 2, except for those provisions required of the contractor.
  • Look for the Red Pin®... the mark of genuine Crosby quality.

G‑210 Screw Pin Chain Shackles – full specifications

Nominal Size (in) Nominal Size (mm) WLL (t) (frac) WLL (t) (dec) Stock No. HEFT Model No. Weight (kg) A (mm) Tol A ± B (mm) C (mm) Tol C ± D (mm) E (mm) F (mm)
1/4 6.35 1/2 0.5 1019150 HTDS-0001 0.04 12 1.5 8 29 1.5 6 20 33
5/16 7.93 3/4 0.75 1019178 HTDS-0002 0.07 14 1.5 10 31 1.5 8 21 37
3/8 9.52 1 1 1019196 HTDS-0003 0.12 17 1.5 11 37 1.5 10 26 46
7/16 11.11 1 1/2 1.5 1019212 HTDS-0004 0.19 19 1.5 13 43 3.3 11 30 52
1/2 12.7 2 2 1019230 HTDS-0005 0.29 21 1.5 16 48 3.3 13 33 59
5/8 15.87 3 1/4 3.25 1019258 HTDS-0006 0.56 27 1.5 20 61 3.3 18 43 75
3/4 19.05 4 3/4 4.75 1019276 HTDS-0007 1.02 32 1.5 23 72 3.3 21 51 89
7/8 22.22 6 1/2 6.5 1019294 HTDS-0008 1.43 37 1.5 26 84 6.4 25 58 103
1 25.4 8 1/2 8.5 1019310 HTDS-0009 2.15 43 1.5 29 96 6.4 27 68 119
1-1/8 28.57 9 1/2 9.5 1019338 HTDS-0010 3.06 46 1.5 32 108 6.4 32 74 131
1-1/4 31.75 12 12 1019356 HTDS-0011 4.1 52 1.5 36 119 6.4 35 83 146
1-3/8 34.92 13 1/2 13.5 1019374 HTDS-0012 5.27 57 3.3 39 133 6.4 38 92 162
1-1/2 38.1 17 17 1019392 HTDS-0013 7.23 61 3.3 42 146 6.4 41 99 176
1-3/4 44.45 25 25 1019418 HTDS-0014 12.13 73 3.3 52 178 6.4 57 127 224
2 50.8 35 35 1019436 HTDS-0015 19.19 83 3.3 59 197 6.4 61 146 258
2-1/2 63.5 55 55 1019454 HTDS-0016 32.54 105 6.4 71 267 6.4 80 184 324
⤹ scroll horizontally if needed

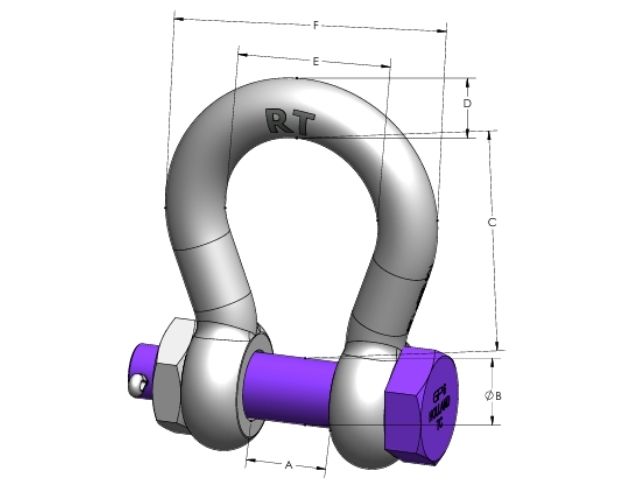

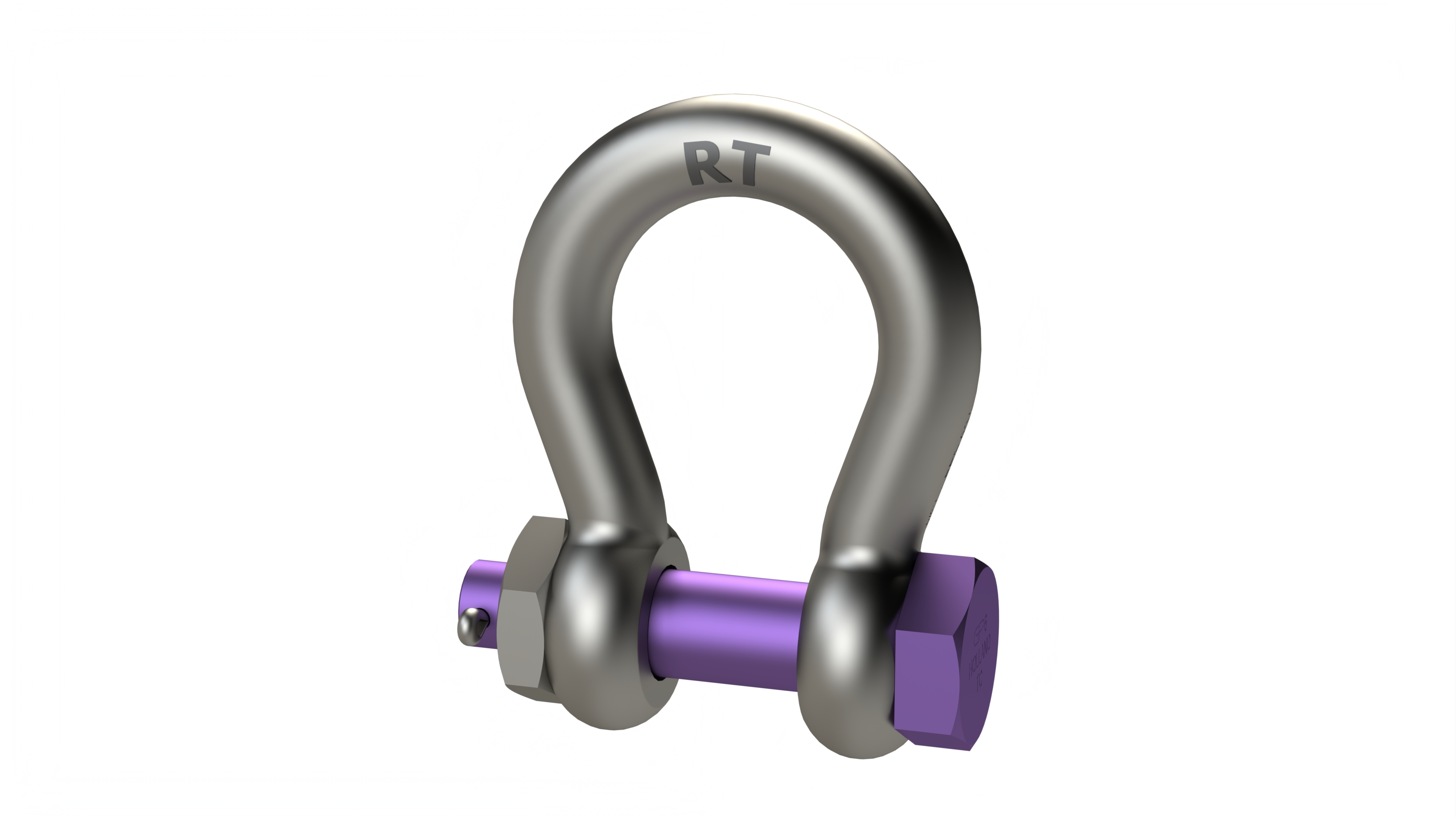

G-2130 / S-2130 Bolt Type Anchor Shackles

  • Forged, Quenched & Tempered, with alloy bolts.
  • Approved for use at -40° C (-40° F) to 204° C (400° F).
  • Meets or exceeds all requirements of ASME B30.26.
  • Sizes 3/8 and below are mechanically galvanized.
  • Working Load Limit and Grade 6 permanently shown on every shackle.
  • Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit (1/3t - 55t).
  • Hot-dip galvanized (G) or self colored (S). 85, 120, and 150-metric ton shackles are all hot-dip galvanized bows and the bolts are Dimetcoted® and painted red.
  • Shackles 85 metric tons and larger are individually proof tested to 2.0 times the working load limit.
  • Type Approval certification in accordance with ABS Marine Vessel Rules, ABS Mobile Offshore Units, and ABS Guide for the Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
  • 3.1 Certification as standard available for charpy and statistical proof test from 3.25t up to 25 tons to DNV 2.7-1 and EN13889.
  • Crosby 3.25t through 25t G-2130OC anchor shackles are type approved to DNV Certification Notes 2.7-1- Offshore Containers. These Crosby shackles are statistical proof and impact tested to 42 Joules (31 ft-lb) min. avg. at -20° C (-4° F). The tests are conducted by Crosby and 3.1 test certification is available upon request.
  • All other 2130 shackles can meet charpy requirements of 42 Joules (31 ft-lb) avg at -20° C (-4° F) when requested at time of order.
  • Meets the performance requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 3, except for those provisions required of the contractor.
  • Look for the Red Pin®... the mark of genuine Crosby quality

G‑2130 / S‑2130 Bolt Type Anchor Shackles – full specifications

Nominal Size (in) Nominal Size (mm) WLL (t) (frac) WLL (t) (dec) Stock No. HEFT Model No. Weight (kg) A (mm) Tol A ± B (mm) C (mm) Tol C ± D (mm) E (mm) F (mm)
3/16 4.76 1/3 0.33 1019464 HTBS-0001 0.03 10 1.5 6 22 — 5 15 25
1/4 6.35 1/2 0.5 1019466 HTBS-0002 0.05 12 1.5 8 29 1.5 6 20 33
5/16 7.93 3/4 0.75 1019468 HTBS-0003 0.10 14 1.5 10 31 1.5 8 21 37
3/8 9.52 1 1 1019470 HTBS-0004 0.15 17 1.5 11 37 1.5 10 26 46
7/16 11.11 1 1/2 1.5 1019471 HTBS-0005 0.22 19 1.5 13 43 3.3 11 30 52
1/2 12.7 2 2 1019472 HTBS-0006 0.36 21 1.5 16 48 3.3 13 33 59
5/8 15.87 3 1/4 3.25 1019490 HTBS-0007 0.76 27 1.5 20 61 3.3 18 43 75
3/4 19.05 4 3/4 4.75 1019515 HTBS-0008 1.23 32 1.5 23 72 3.3 21 51 89
7/8 22.22 6 1/2 6.5 1019533 HTBS-0009 1.79 37 1.5 26 84 6.4 25 58 103
1 25.4 8 1/2 8.5 1019551 HTBS-0010 2.57 43 1.5 29 96 6.4 27 68 119
1-1/8 28.57 9 1/2 9.5 1019579 HTBS-0011 3.75 46 1.5 32 108 6.4 32 74 131
1-1/4 31.75 12 12 1019597 HTBS-0012 5.31 52 1.5 36 119 6.4 35 83 146
1-3/8 34.92 13 1/2 13.5 1019613 HTBS-0013 7.18 57 3.3 39 133 6.4 38 92 162
1-1/2 38.1 17 17 1019631 HTBS-0014 8.62 61 3.3 42 146 6.4 41 99 176
1-3/4 44.45 25 25 1019659 HTBS-0015 15.4 73 3.3 52 178 6.4 57 127 224
2 50.8 35 35 1019677 HTBS-0016 23.7 83 3.3 59 197 6.4 61 146 258
2-1/2 63.5 55 55 1019695 HTBS-0017 44.6 105 6.4 71 267 6.4 80 184 324
3 76.2 85 85 1019711 HTBS-0018 69.9 127 6.4 84 330 6.4 92 200 371
3-1/2 88.9 120 120 1019739 HTBS-0019 120 133 6.4 96 372 6.4 111 229 432
4 101.6 150 150 1019757 HTBS-0020 153 140 6.4 108 368 6.4 116 254 457
⤹ scroll horizontally if needed

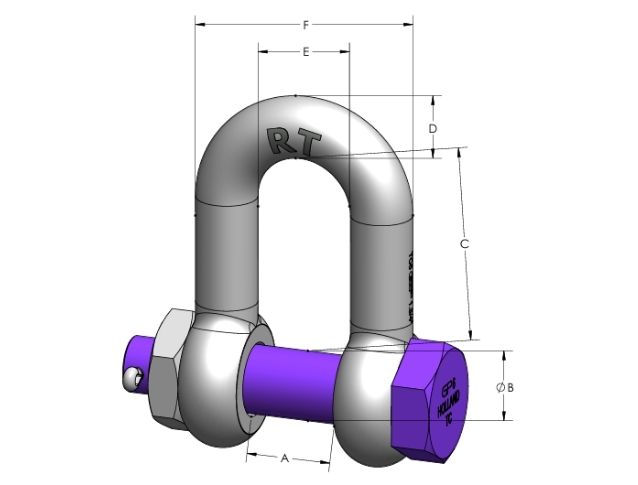

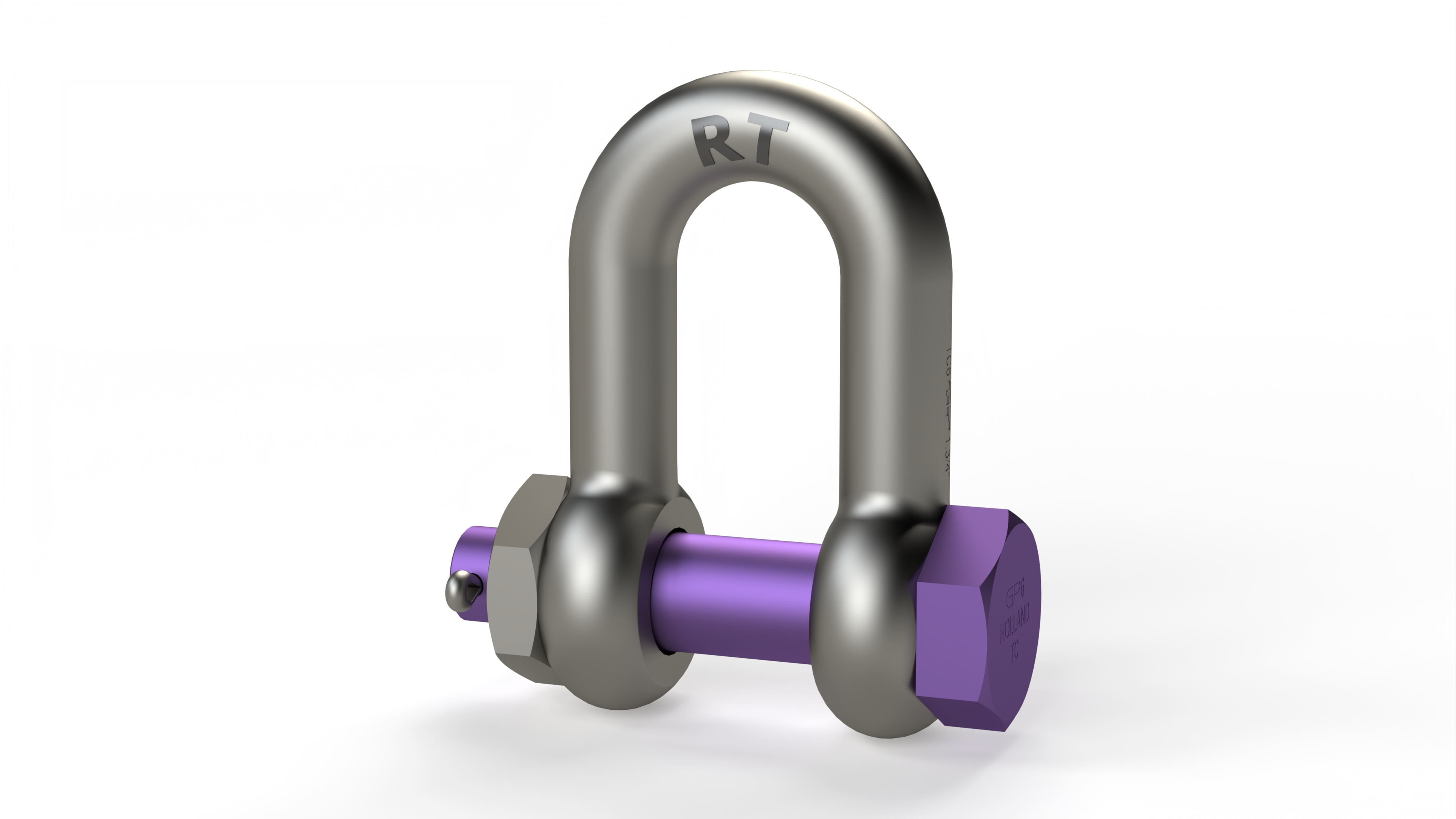

G-2150 Bolt Type Chain Shackles

  • Working Load Limit and Grade 6 permanently shown on every shackle.
  • Forged, Quenched & Tempered, with alloy pins.
  • Hot-dip galvanized. 85 ton shackles have hot-dip galvanized bows and the bolts are Dimetcoted® and painted red.
  • Sizes 3/8 inch and below are mechanically galvanized.
  • Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit. (1/2t - 55t).
  • Approved for use at -40° C (-40 degrees F) to 204° C (400° F).
  • Meets or exceeds all requirements of ASME B30.26.
  • Sizes 1/2 - 25t meet the performance requirements of EN13889:2003.
  • Shackles 55 metric tons and smaller can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification when requested at time of order.
  • Type Approval certification in accordance with ABS Marine Vessel Rules, ABS Mobile Offshore Units, and ABS Guide for the Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
  • Meets the performance requirements of Federal Specification RR-C-271, Type IVB, Grade A, Class 3, except for those provisions required of the contractor.
  • All 2150 shackles can meet charpy requirements of 42 Joules (31 ft-lb) avg at -20° C (-4° F) upon special request.
  • Look for the Red Pin®... the mark of genuine Crosby quality.

G‑2150 Bolt Type Chain Shackles – full specifications

Nominal Size (in) WLL (t)* Stock No. Weight (kg) A (mm) Tol A ± B (mm) C (mm) Tol C ± D (mm) F (mm) G (mm) H (mm) M (mm) P (mm) Replacement Bolt Stock No.
1/4 1/2 1019768 0.06 12 1.5 8 22 1.5 6 16 25 40 40 6 —
5/16 3/4 1019770 0.10 14 1.5 10 26 1.5 8 19 29 49 46 8 —
3/8 1 1019772 0.15 17 1.5 11 32 3.3 10 23 36 59 55 10 —
7/16 1 1/2 1019774 0.22 19 1.5 13 37 3.3 11 27 41 68 64 11 —
1/2 2 1019775 0.34 21 1.5 16 41 3.3 13 30 46 77 71 13 —
5/8 3 1/4 1019793 0.67 27 1.5 20 51 3.3 16 38 59 96 90 16 —
3/4 4 3/4 1019819 1.14 32 1.5 23 61 6.4 19 46 70 115 105 21 —
7/8 6 1/2 1019837 1.75 37 1.5 26 71 6.4 22 53 81 135 122 25 —
1 8 1/2 1019855 2.52 43 1.5 29 81 6.4 25 61 94 151 137 25 —
1-1/8 9 1/2 1019873 3.45 46 1.5 32 90 6.4 29 68 103 172 150 32 1082839
1-1/4 12 1019891 4.90 52 1.5 36 100 6.4 32 76 115 191 170 35 1082857
1-3/8 13 1/2 1019917 6.24 57 3.3 39 111 6.4 35 84 127 210 183 38 1082875
1-1/2 17 1019935 7.72 61 3.3 42 122 6.4 38 92 137 230 196 41 1082893
1-3/4 25 1019953 14.2 73 3.3 52 146 6.4 45 106 162 279 245 54 1082919
2 35 1019971 21.2 83 3.3 59 171 6.4 53 127 184 324 274 60 1082937
2-1/2 55 1019999 38.6 105 6.4 71 203 6.4 67 144 238 377 344 67 1082955
3 † 85 1020013 56.4 127 6.4 84 216 6.4 76 165 279 428 384 89 1084449
⤹ scroll horizontally if needed
